A one-degree error in temperature can significantly alter a Brix reading, potentially costing a craft brewery hundreds of dollars per batch. This makes accurate refractometer use important for homebrewing, winemaking, coffee roasting, and lab work.
Hand Refractometer Function
This focused guide covers the basics of refractometers, how they work, and how to use them in real settings. It includes step-by-step guidance for handheld and digital models, plus tips on choosing the right refractometer for your needs. It also explains where to buy refractometers, including from trusted suppliers like Installation Parts Supply (InstallationPartsSupply.com), a factory distributor and industrial supplier supporting the beverage industry and OEMS for over twenty years.
It provides quick guidance on obtaining Brix and Specific Gravity readings, performing calibration checks, and understanding the importance of temperature compensation and proper sample handling. Whether you use a field-ready model or a digital benchtop unit, this section helps you take accurate and repeatable measurements with confidence.
Important Takeaways
- Even small temperature shifts can change Brix results, making temperature control important.
- Using a refractometer applies across brewing, winemaking, honey testing, and salinity checks.
- Handheld and digital refractometers fit different tasks, so match the tool to your workflow.
- Choose a digital refractometer if you need fast readings, saved data, and system integration.
- Buying a refractometer from reputable suppliers like Installation Parts Supply helps ensure access to commercial-grade parts and support.

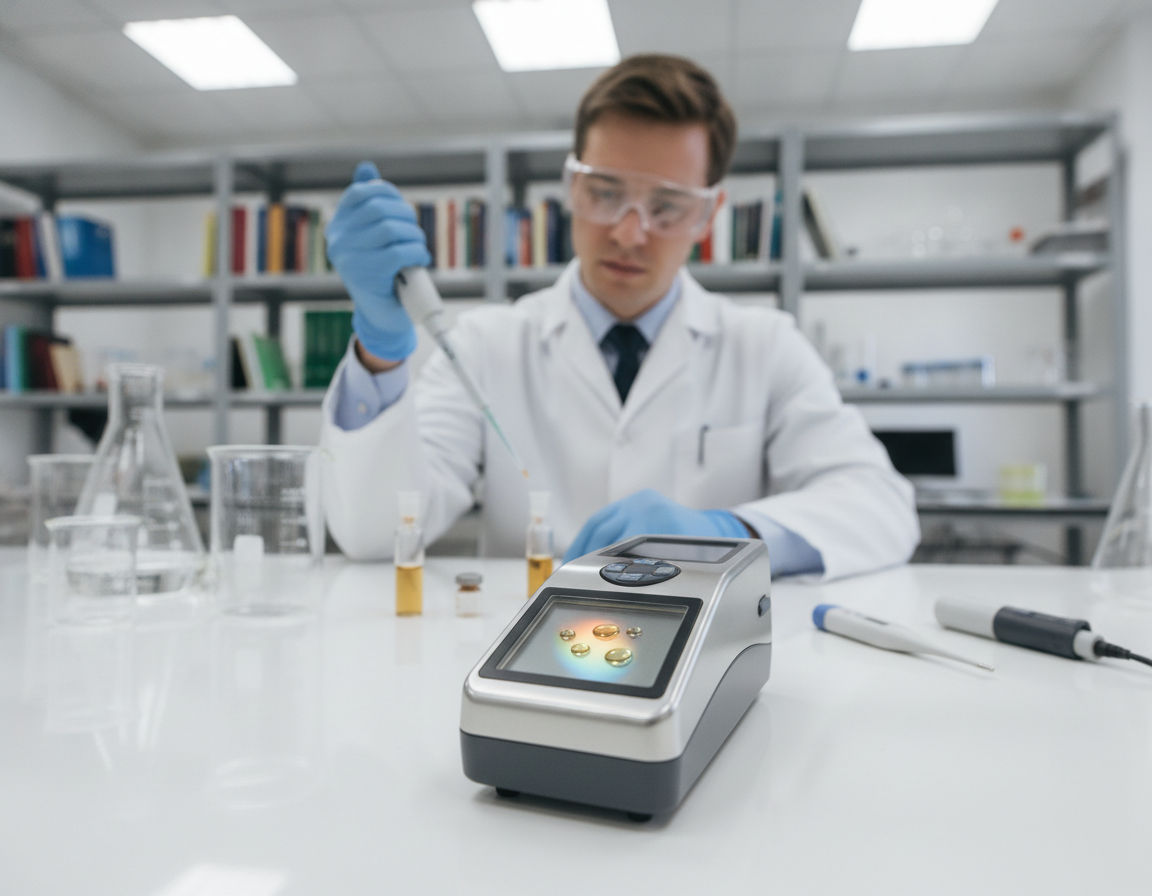

Automated Refractometers
What A Refractometer Is And How It Works
A refractometer measures the bending of light as it transitions from air into a sample. That bending reveals the refractive index, an important value linked to the sample’s composition and concentration. Understanding how refractometers work helps you choose the right tool and avoid common mistakes.
Core Definition And Principle
The device operates on the principles of Snell’s Law and the critical angle. When light passes into the sample, refraction creates a boundary between bright and dark areas. This visible boundary relates to a particular refractive index reading. Factors such as temperature and wavelength can affect readings, so many instruments require compensation or temperature control.
Common Measurement Units And Scales
Refractometers can show refractive index directly or convert it into application-specific units. For instance, Brix (°Bx) measures sucrose concentration in solutions like fruit, juice, and honey. In brewing and winemaking, Plato (°P), Specific Gravity (SG), Oechsle (°Oe), and Baumé (B°) are common scales. Salinity is commonly shown as PPT, ‰, or percent.
The output options include RI, % sugar, °Bx, °P, SG, and salinity. Users often use conversion tables or calculators to verify results. Select a scale that fits the sample and expected range for the most reliable results.
Refractometer Types And Their Applications
Handheld optical models are easy to carry and usually require just a few drops. These tools use an internal prism and a reticle viewed through magnification. They are useful for both professionals and hobbyists working in vineyards, apiaries, and homebrew spaces.
Digital refractometer models employ LED light and a sensor to provide direct digital readings. They often include automatic temperature correction, which simplifies data logging. Benchtop Abbe units are ideal for labs that need strong accuracy and broad wavelength control.
Automatic and inline refractometers cater to food processing and industrial applications, facilitating high-throughput or continuous monitoring. Specialized portable optical models are available for applications such as coolants and emulsions. Dual-scale instruments, displaying both Brix and SG or Plato, offer convenience in brewing.
| Refractometer Type | Typical Use | Main Advantage | Usual Range |
|---|---|---|---|
| Pocket optical | Field tests: vineyards, beekeeping, homebrew | Low sample volume, portable | 0-32 °Bx |
| Digital handheld | Quick lab and field checks | Clear display, temperature correction | 0 to 85 °Bx, depending on model |
| Benchtop Or Abbe | Laboratories and QC | Strong precision, wavelength control | Wide refractive index and concentration ranges |
| Automatic / inline | Food processing and production lines | Continuous, high-throughput | Application-specific ranges |
| Portable fluid optical | Coolants, emulsions, glycol | Application-specific concentration testing | Varies by use case |
Selecting The Right Refractometer For Your Needs
When choosing a refractometer, start with the exact task you need it to perform. A handheld optical model works well for fruit assessments, beekeeping, and fast homebrew checks. On the other hand, a digital handheld is more suitable for coffee roasting and craft brewing due to its rapid readout capabilities. Benchtop or inline units suit labs, production lines, and glycol monitoring where accuracy and consistency are essential.
Match the device type to the application
For homebrewers aiming to measure wort and estimate ABV, it is advisable to opt for models displaying °Bx and SG or Plato. Coupling a refractometer with a hydrometer can aid in post-fermentation calculations. In contrast, professional breweries often favor benchtop digital units or inline refractometers for continuous monitoring and seamless integration into control systems.
Honey and syrup testing calls for a refractometer rated for high Brix values, often 60 to 90 °Bx. Coffee enthusiasts often prefer high-resolution digital handhelds for roast development and extraction tracking. For field testing plants and fruit, light optical or battery-powered handheld units make Brix checks fast and reliable.
Key features to compare
When comparing refractometers, focus on the measurement range and available units: Brix, Plato, SG, and refractive index. Automatic Temperature Compensation (ATC) and calibration type, whether mechanical or digital, also matter. The instrument’s accuracy, repeatability, and required sample volume all affect practical reliability.
Durability is a critical factor, given the tool’s use in breweries or on farms. Choosing between glass and sapphire prisms affects scratch resistance and cleaning convenience. For digital and automatic models, USB, RS232, or network connectivity options are essential for data logging. Low sample volume and fast calibration can speed up everyday testing.
Cost and budget considerations
Handheld optical refractometers are often the most affordable option because they need no power and suit tight budgets. Handheld digital units are usually mid-range and offer automatic correction with easy-to-read screens.
Benchtop, automatic, and inline units, while more expensive, offer superior accuracy, throughput, and integration, making them valuable in labs and production environments. Total cost should include calibration standards, spare prisms, and installation parts such as tubing, clamps, and fittings. Comparing reputable brands helps you find a good balance between features and value.
| Application | Recommended Type | Important Features | Common Cost Range |
|---|---|---|---|
| Plants, fruit, and beekeeping | Optical handheld or digital handheld | Brix range 0-35, low sample volume, rugged | $30-$250 |
| Homebrewing and craft beer | Dual-scale handheld or benchtop digital | Brix, SG/Plato, ATC, quick calibration | About $50 to $1,200 |
| Professional brewing and wine labs | Benchtop digital or inline | Precision, data capture, system integration | $1,000 to $10,000+ |
| Coffee roasting and brew analysis | Handheld digital | Detailed resolution, fast display, ATC | $100-$600 |
| Honey and high-sugar matrices | High-Brix handheld or benchtop | Range up to 90 °Bx, durable prism | $80-$2,000 |
Preparing Samples And Workspaces For Accurate Readings
A clean, calm workspace and careful sample preparation are essential for dependable results. Small, consistent practices during setup significantly diminish errors during refractometer tests. This helps produce more consistent measurements. Follow a short checklist before starting the process.
Cleaning And Sample Handling
Make sure the prism stays residue-free with distilled or deionized water and lint-free wiping. Wipe the prism carefully after every use to reduce contamination and protect the instrument. For stubborn residue, use the solvent recommended by the manufacturer.
When testing thick substances such as honey or syrup, warm them slightly to improve flow. This facilitates even distribution. Employ pipettes, disposable droppers, or syringes for accurate application and minimal spillage. Eliminate any bubbles and foam before recording the reading.
Temperature Control And Compensation
Because refractive index is temperature-dependent, keep both sample and instrument at ambient temperature. Many digital units automatically adjust for temperature changes. For critical work, confirm that this function is active and accurate.
For precise work, pair refractometer readings with a dependable thermometer. Adhere to the manufacturer’s instructions for calibrating Brix values when operating conditions deviate from the recommended range. Apply correction factors when needed to account for temperature differences.
Sample Volume And Even Mixing
Handheld models suffice with a few drops, whereas benchtop devices may necessitate larger quantities. For suspensions and emulsions, mix thoroughly to reduce light scattering from solids that can distort results.
For samples in fermentation, filtering or clarification can improve agreement between refractometer and hydrometer readings. Following strong sample preparation habits, including mixing, impurity removal, and temperature matching, improves precision and reduces repeat testing.
Using A Handheld Refractometer Step By Step
Accurate readings are easier when refractometer use follows the same routine each time. This guide covers preparation, sample application, and result interpretation for different uses. It supports consistent readings from handheld and pocket refractometers.
Preparing the instrument
Use distilled water and lint-free tissue to clean the prism. Inspect the glass for scratches or residue that could affect a reading refractometer result.
Calibrate the instrument before use. With analog units, place distilled water on the prism and turn the calibration screw until the scale shows 0 °Bx or the required RI. For digital units, follow the device routine to set zero and confirm ATC is functioning.
For optical handheld units, review lighting and focus the eyepiece. Proper light makes repeatable refractometer readings easier.
Applying the sample and taking the reading
Place a few drops so the liquid fully covers the prism area without overflowing. Close the daylight plate on optical models to form a thin, even film and avoid trapped air.
For optical handheld refractometers, look through the eyepiece and adjust focus until the reticle is sharp. Align the shadow line with the scale and note the value.
With digital handheld refractometers, place the sample and press measure. Wait for the display to stabilize. Many pocket models automatically display a temperature-corrected result.
Recording and understanding readings
Write down the numeric reading and the sample temperature. Note which scale you used, such as °Bx, SG or Plato, so results stay comparable over time.
For brewing, combine refractometer and hydrometer data or use manufacturer calculators to estimate ABV. Use the R-D approach: refractometer reading (°Bx) minus the D correction from SG conversions. When both instruments are read at the same temperature, expect roughly ±0.5% ABV accuracy in most homebrew scenarios.
In food production or QC, compare readings with target specifications or conversion charts. For honey and other high-Brix products, use scales and tables made for dense syrups to prevent misreading.
How To Use Digital And Automatic Refractometers
In today’s labs and production environments, precision and consistency are key. A digital refractometer offers swift data acquisition and minimizes human error. Opt for a benchtop automatic refractometer for high-volume applications or a portable digital refractometer for on-site assessments.
Device Setup And Powering
Initiate by adhering to the manufacturer’s guidelines for power activation, battery placement, and warm-up. Calibration with distilled water or certified solutions is essential, ensuring Automatic Temperature Compensation is operational.
Configure measurement units according to your operational needs, such as °Bx for a digital Brix refractometer, Specific Gravity, or refractive index. For production-line automatic systems, configure pump rates, rinse cycles, and sample handling based on supplier guidance.
Automated Reading Process
Automated refractometers use LED illumination with image sensors or diode arrays to detect the refractive boundary. The system then uses algorithms to convert the signal into refractive index with temperature correction.
Many models accept autosamplers or pumps for sequential loading, measurement, and rinsing of samples. Continuous concentration monitoring is facilitated by inline automated refractometer setups. Keep sample lines clean and free of air bubbles to prevent inaccurate readings.
Configure sampling intervals and alert thresholds for readings outside specification. Use a portable digital refractometer for quick verification while troubleshooting automated systems.
Logging, Data Output, And Integration
Digital units provide instant results. Export options often include USB, RS232, and Ethernet for data capture. Choose units that timestamp readings and record temperature with each measurement.
Integrate logs with LIMS or SCADA for enhanced process control and quality record-keeping. Many prefer automatic refractometers with native export formats for streamlined data management.
| Feature | Portable Digital Refractometer | Benchtop Automatic Refractometer | Inline Automated Refractometer |
|---|---|---|---|
| Usual application | On-site checks, QC spot tests | Lab batches, high-volume QC | Continuous process monitoring |
| Calibration | Distilled-water manual calibration | Scheduled, automatic routines | Automated calibration and remote verification |
| Data export | USB, Bluetooth | USB, RS232, Ethernet | Ethernet, Modbus, SCADA |
| Sample process | Drop or small cuvette | Autosampler and pumps | Process lines with pumps |
| Most useful for | Vineyards and on-site checks | Beverage R&D and QC labs | Brewing, dairy, and syrup processing |
When installing a system, choose fittings and tubing that match supplier requirements for flow and pressure. A properly configured digital Brix refractometer can provide fast, verifiable results for production and laboratory teams.
Calibrating And Validating Your Refractometer
Accurate measurement depends on regular calibration and validation. Start each session with a calibration check, record the results, and follow the manufacturer’s guidance. This practice enhances the refractometer’s accuracy and reduces troubleshooting time.
Calibration standards and procedures
Distilled or deionized water serves as the primary zero-reference. The refractometer should read 0 °Bx or the specified refractive index. Use certified fluids with known Brix or refractive index values for multi-point calibration.
Brix calibration and temperature checks
Temperature changes affect readings. Calibration at the recommended temperature or with Automatic Temperature Compensation is essential. If ATC is unavailable, use the manufacturer’s tables for manual correction.
Select calibration standards near the sample’s Brix range. Fruit juices need low-Brix standards, while honey and syrups need high-Brix standards. Record the lot number and expiration date of each standard for traceability.
Checking accuracy with reference materials
Periodic checks with reference materials and certified calibration fluids are necessary. For critical readings, compare results with a hydrometer or Abbe refractometer in a laboratory setting. This step increases confidence in refractometer validation, essential for precise work.
In brewing and winemaking, pair refractometer readings with hydrometer Specific Gravity checks to estimate ABV. Use approved calculators or tables to align the readings. Proper technique and cross-checking can achieve combined results with an accuracy near ±0.5% ABV.
Keep a calibration log with dates, standard lot numbers, measured values, and adjustments. Replace calibration fluids when expired or contaminated. Regular documentation supports quality audits and shows ongoing calibration standard control.
Using A Refractometer For Brewing, Winemaking And Beverage Testing
Refractometers are valuable for brewers, winemakers, and roasters because they simplify sugar and soluble-solids measurement. This part focuses on using refractometers for wort, must, and related beverage testing. It also offers insights into their use in brewing, winemaking, cider production, and coffee roasting.
Measuring wort and calculating ABV
Refractometer readings help track °Brix before fermentation starts. The refractive index changes with alcohol content, necessitating the use of a hydrometer SG or a correction formula for accurate ABV estimation. A common method uses the refractometer reading and hydrometer SG to calculate D = (SG – 1) × 1000, then applies R-D to reference tables. Ensuring both samples are at the same temperature minimizes error.
Beer, wine, cider and coffee applications
Winemakers use refractometers to measure grape must in °Brix or degrees Oechsle, helping with harvest planning and sugar addition. Brewers use °P or °Bx readings before and after boiling, then monitor fermentation with corrected refractometer data. For cider production, Brix readings help estimate alcohol content and guide yeast and nutrient selection.
Specialty coffee professionals use refractometers to report TDS and extraction yield. A dedicated coffee refractometer helps roasters and baristas measure brew strength and refine brewing parameters. For beer and cider, a refractometer beer or beer refractometer facilitates quick field checks on tanks and kegs.
Homebrew and professional contexts
For homebrewers, handheld or digital handheld models are popular because they are easy to operate. Professionals, on the other hand, opt for benchtop or inline brewing refractometer systems for their accuracy and data logging capabilities. Draft systems and soda lines benefit from monitoring with correct installation parts and regular maintenance to preserve sample quality.
| Use Case | Measurement Unit | Suggested Instrument | Primary Benefit |
|---|---|---|---|
| Homebrew gravity checks | °Brix or °P | best refractometer for home brewing, handheld | Affordable and fast readings |
| Commercial brewery monitoring | °Bx with temperature compensation | digital benchtop brewing refractometer | Strong accuracy and data export |
| Wine harvest planning | °Brix / °Oechsle | portable brewing refractometer | Rapid field sampling at the vineyard |
| Cider fermentation planning | °Bx | refractometer for brewing, stable temp | Predictable alcohol content |
| Specialty coffee extraction | TDS / % extraction | coffee refractometer | Consistent cup strength and recipe tuning |
| Draft beer checks | °Bx or percent solids | inline or handheld beer refractometer | Rapid draft line and keg checks |
When selecting a refractometer for brewing, consider the specific measurement needs. For homebrewing, a good refractometer should have clear scales and simple calibration. Coffee users should look for a refractometer with TDS reporting. For tanks and kegs, choose a durable beer refractometer suited to repeated checks.
Honey, Glycol, Plant And Salinity Refractometer Applications
Specialty refractometry covers many tasks, from measuring honey moisture to checking coolant levels and plant ripeness. The selection of the appropriate instrument and calibration range is critical for ensuring the reliability and consistency of measurements. Below are targeted tips and best practices for common specialized applications.
Measuring Honey And Syrups
Because honey commonly falls between 60 and 90 °Bx, testing it requires a high-Brix instrument. Utilizing a syrup refractometer or a digital model designed for honey, with specific scales, facilitates rapid and precise moisture content determination. Slightly warm viscous samples and stir them well before measurement. Supplier-provided conversion charts help translate Brix values into moisture percentages and quality grades.
Coolant And Glycol Concentration
Effective concentration control in cooling systems is important. A digital glycol refractometer provides accurate readings of ethylene or propylene glycol concentration as a percentage or freezing-point equivalent. Choose handheld models for fast spot checks and automatic units for continuous monitoring in HVAC systems. Calibrate with the fluids recommended by the manufacturer to support consistent readings.
Plant, Juice And Salinity Measurements
Field and lab uses often need different refractometer ranges. For plant analysis, a Brix refractometer typically spans 0-12 °Bx, aiding in the determination of soluble solids for optimal harvest timing. For juice and beverage processing, sugar-content refractometers support recipe consistency and quality control. For marine and food brine applications, a digital saltwater refractometer can measure in PPT or percent to confirm proper salinity for aquaculture and canning.
It is imperative to align the device’s range with the specific application and to use the correct calibration fluid. Review trusted suppliers and product pages before buying so specifications match the measurement task and records remain traceable.
Maintaining, Troubleshooting And Extending Instrument Life
Maintaining a refractometer supports longer life and dependable performance. Regular checks and small adjustments after each use can prevent bigger failures. Below, we outline essential care steps, common issues, and when to seek professional repair or replacement.
Routine Maintenance Checklist
Clean the prism after each use with distilled water and a lint-free cloth. For stubborn residues, use mild isopropyl alcohol, adhering strictly to the manufacturer’s guidelines.
Examine the prism for any scratches or chips. Inspect seals and O-rings on both benchtop and inline models to prevent leaks and contamination.
Regular calibration with distilled water and certified standards is critical. Keep detailed calibration records with dates and results to track drift over time.
Ensure batteries in portable models are replaced before they fail. Keep digital-unit firmware and software current to support reliable operation.
Common Problems And Fixes
A dirty, scratched, or bubble-covered prism can cause inconsistent readings. Cleaning, drying, and recalibrating the device can often resolve the problem. Make sure the sample and instrument are at the same temperature before measurement.
If the zero reading is wrong, recalibrate with distilled water. If the zero continues to shift, check prism alignment and optical surfaces for damage.
Digital error codes or a blank display indicate power or firmware problems. Reboot the unit, confirm stable power, and clean sensors. Check the manual for code meanings before attempting internal repairs.
Inline and automatic system malfunctions often come from blocked sample lines, faulty pumps, or clogged filters. Remove air locks, confirm rinse cycles function, and inspect tubing for wear. Keeping spare refractometer parts available can reduce downtime.
Repair Or Replacement Timing
Handheld units should be replaced when prism damage cannot be repaired or calibration drift exceeds manufacturer specifications. A crushed or deeply scratched prism is rarely restored fully through repair.
For benchtop and automatic units, contact the manufacturer or an authorized service center for sensor replacement or factory recalibration. Before authorizing repair, compare the estimate with replacement cost.
For system installations such as draft beer, soda, or RO setups, monitor the service life of fittings and tubing. If repair costs approach the price of a new unit or your measurement needs change, consider replacement. Stock common refractometer parts and tubing so repairs are faster and instrument life is protected.
| Maintenance Item | Action | Maintenance Frequency | Life Impact |
|---|---|---|---|
| Prism cleaning | Distilled water and lint-free wipe; alcohol if needed | Every use | Prevents drift and surface damage |
| Calibration | Use distilled water and certified standards; record results | Per protocol or weekly | Maintains accuracy and extends useful life |
| Seals and O-rings | Check and replace worn items | Every month for heavy use | Helps prevent leaks and internal damage |
| Battery power and firmware | Replace batteries; apply updates | Check monthly and update as needed | Ensures reliable digital operation |
| Inline tubing & fittings | Check, clean, and replace worn clamps or tubing | Monthly or according to system schedule | Reduces downtime and need for refractometer repair |
Where To Buy And Get Professional Support For Commercial Use
Start by choosing a device that fits your operational requirements. Refractometers can be sourced from lab suppliers, beverage equipment distributors, and reputable online retailers. It’s essential to compare the accuracy, Automatic Temperature Compensation (ATC), range, and connectivity options. This ensures you select the most suitable refractometer for handheld testing, benchtop analysis, or inline monitoring.
For additional hardware, consider the installation parts supply. Installation Parts Supply, a factory-authorized distributor, offers a wide range of refractometers and brewery installation supplies. Available supplies may include tubing, clamps, regulators, carbonators, and fittings. These components help maintain sanitary flow and protect sample integrity when a commercial refractometer is integrated into a draft system.
When setting up a draft or direct-draw system, choose compatible parts to prevent flow problems. Select draft beer installation parts that fit the taps, regulators, and dispensing lines in use. This selection reduces contamination risk and supports consistent readings over time.
For inline sensing or data integration, collaborate with experienced installers. Work with professional beverage equipment installers and factory-authorized distributors for system design, part selection, and compatibility checks. Their expertise helps ensure the commercial refractometer operates reliably under production conditions.
For complex setups, seek the advice of certified technicians. Certified technicians can support SCADA or LIMS logging, automated sampling, traceability, and calibration certification. Laboratory services can also validate procedures for ABV compliance and commercial labeling.
Use the table below to compare common buying choices and support options for a commercial beverage line.
| Purchase Option | Ideal For | Typical Support | Associated Supplies |
|---|---|---|---|
| Laboratory suppliers such as Ametek and Thermo Fisher | Benchtop accuracy and calibration requirements | Technical datasheets and calibration standards | Calibration fluids, reference materials |
| Beverage equipment distributors, local pro dealers | Integrated taproom and bar systems | Parts matching and on-site installation | Fittings, carbonators, and Taprite regulators |
| Online stores and specialty retailers | Small-lab handheld and digital instruments | Customer reviews, return policies | Cleaning kits, sample cups, and cases |
| Installation Parts Supply and other factory-authorized distributors | OEM needs and commercial installations | Warranty support, factory parts, OEM components | Brewery installation supplies and commercial refractometer units |
| Certified lab services | Compliance needs and traceable calibration | Certificates, validation, and documentation | Reference materials and supporting documentation |
Final Thoughts
A refractometer offers quick, precise measurement of soluble solids, sugar content, salinity, and glycol concentration in many industries. This guide explained the basic principle behind refractive index measurement. It showed why selecting the right instrument matters, from handheld models to benchtop, automatic, and inline units. In food and beverage work, understanding refractometer applications and selecting the right tool helps protect quality. It can reduce expensive mistakes and support steady product quality.
Proper sample preparation, temperature control, and regular calibration are essential for maintaining accuracy. For individuals engaged in small-scale brewing or winemaking, a handheld or digital handheld refractometer is often the most suitable choice. For larger operations or continuous monitoring, benchtop, automatic, and inline models are often better suited. These units can provide data logging and integration for production and regulatory requirements.
Where possible, combine refractometer readings with hydrometer checks, especially for brewing and winemaking ABV calculations. This practice improves quality control by validating results. Keeping detailed calibration and maintenance records is also important. Collaborating with trusted suppliers for parts and installation ensures the longevity and reliability of your refractometer. Using these practices can help you gather consistent and reliable data across food and beverage applications.
